产品名称 ： DWEG智能密集母线槽
产品品牌 ： ca88官方唯一网站
产品型号 ： DWEG
产品详细说明:
一、适用范围：
     DWEG智能密集型母线槽是吸取了国外同类产品的先进技术设计而开发出的一种新型母线槽产品。它
解决了传统母线槽的不足，使产品的综合性能达到了国外同类产品的先进水平，是替代进口的理想产品。
也是众多工程项目的首选产品。主要适用于化工、冶金、工矿企业和文化体育场馆、展览馆、机场车站、商厦
等社会公共场所及高层建筑的输配电供电系统，尤其适用于大功率电流的传输。
一. Scope of application:
     DWEG intelligence-intensive Busway is absorbed foreign advanced technology design of similar products developed out of a new busway products. It addresses the shortage of traditional busbar,so that overall performance of products has reached advanced level of similar foreign products, is the ideal alternative to imported products. Is also the first choice for many projects. Mainly used in chemical,metallurgical, industrial and mining enterprises, and cultural and sports venues, exhibition hall, airport, railway stations,commercial buildings and other public places and high-rise building of social transmission and distribution power supply system, especially for high-power current transmission.

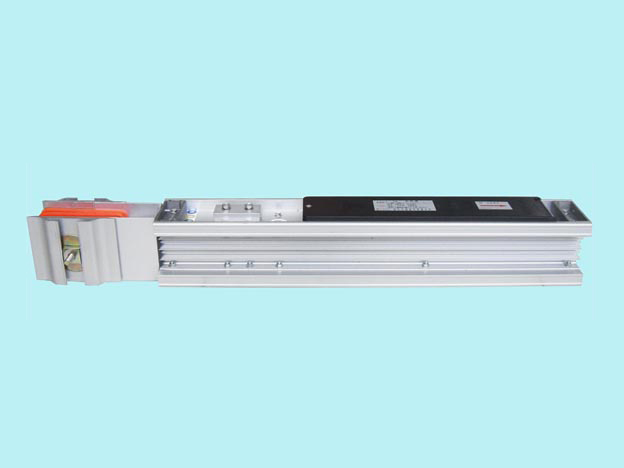

     DWEG系列智能密集型母线槽
     DWEG Series Intelligence intensity bus bar rabbet
二、产品综述：
     母线槽外壳选用优质铝合金材料拉挤成型，外形美观，重量轻，耐腐蚀性强。侧板采用散热片形状设计，热传导性好，散热效果极佳。外壳钢度好，机械强度高，可满足大跨距安装要求。

二、Second, the product review:
     Busway housing use high-quality aluminum alloy materials Pultrusion, beautiful appearance, light weight and corrosion resistance. Side using the shape of heat sink design, good thermal conductivity, excellent heat dissipation. Good degree of shell steel, high mechanical strength, can be installed to satisfy large span requirements.
     DWEG智能密集型母线槽系统采用的是紧密三明治技术(密集型)，无须装设内置的防烟屏，经最新工艺处理后,外套优质绝缘材料,阻燃、绝缘性能良好。导电排紧密、无空隙地安装在外壳里，并且采用不含卤的聚酯护套完全绝缘(隔热等级150℃)。母线槽外壳由带散热片铝合金材料制成,具有良好的散热功能及节能效果，这项技术保证了产品在最大电流下的压降值和远距离的极端条件下的高性能。标准产品的防护等级为I P 6 7，能满足户外及有喷淋水的场所使用。铝合金外壳整体兼作PE 线，铝合金外壳截面积大于一个相线的70%以上。DWEG 母线槽系统额定电流在630A 至5000A之间，动热稳定性好、体积小、散热好、低温升、节约空间。压降小、低阻抗、降低电能损耗，提高电流承载能力，大大降低投资成本。
     DWEG intelligent intensive Busway system is the close sandwich technology (intensive), no need for built-in smoke screen, by-the-art treatment, coat quality insulation materials,
fire-retardant, good insulation properties. Bars close, no gap in the case where installation and use of halogen free polyester jacket fully insulated (insulation level of 150 ℃).
     Busway housing made of aluminum alloy material with a heat sink with good heat dissipation and energy saving effect, the technology to ensure the product under the pressure drop in the maximumcurrent value and long-range high performance under extreme conditions. The protection level of standard products for the IP 6 7, to meet the outdoors and have a place to use the water spray. PE line aluminum alloy case doubles
as a whole, aluminum alloy cross-sectional area larger than a similar line of more than 70%.DWMC busbar systemrated current of 630A to 5000A in between the dynamic thermal stability, small size, heat, and cold temperature, saving space. Pressure drop, low impedance, lower energy consumption, improve the current carrying capacity and greatly reduce the cost of investment.
●低阻抗                            ● Lowimpedance
●低温升                            ● temperature rise
●低噪音                            ● Lownoise
●防烟屏                            ● smoke screen
●弹性的设计                      ● Flexible design
●外壳为地线                      ● shell for the ground
●安装容易                         ● Easy to install
●可选装智能装置                ● Made known to the device selected
     母线槽选型表
     Bus bar rabbet shaping table
